Dpack corrugated High Precion Single Facer Corrugated Machine With Steam Quick Change

Name: Dpack corrugated High Precion Single Facer Corrugated Machine With Steam Quick Change
Brand: Dpack
Price: 1 USD

Brand Name : Dpack

Model Number : HSF-380S

Certification : IOS9001

Place of Origin : China Hebei Dongguang

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 4 Sets/Month

Delivery Time : According To Product

Packaging Details : Wooden case or wrapping film

Automatic grade : Auto

Steam Quick Change : Fast Connect Steam

Material : Roller is special special alloy steel of 48CrMo

Weight : 2200type 15T 1800type14T

Contact Now

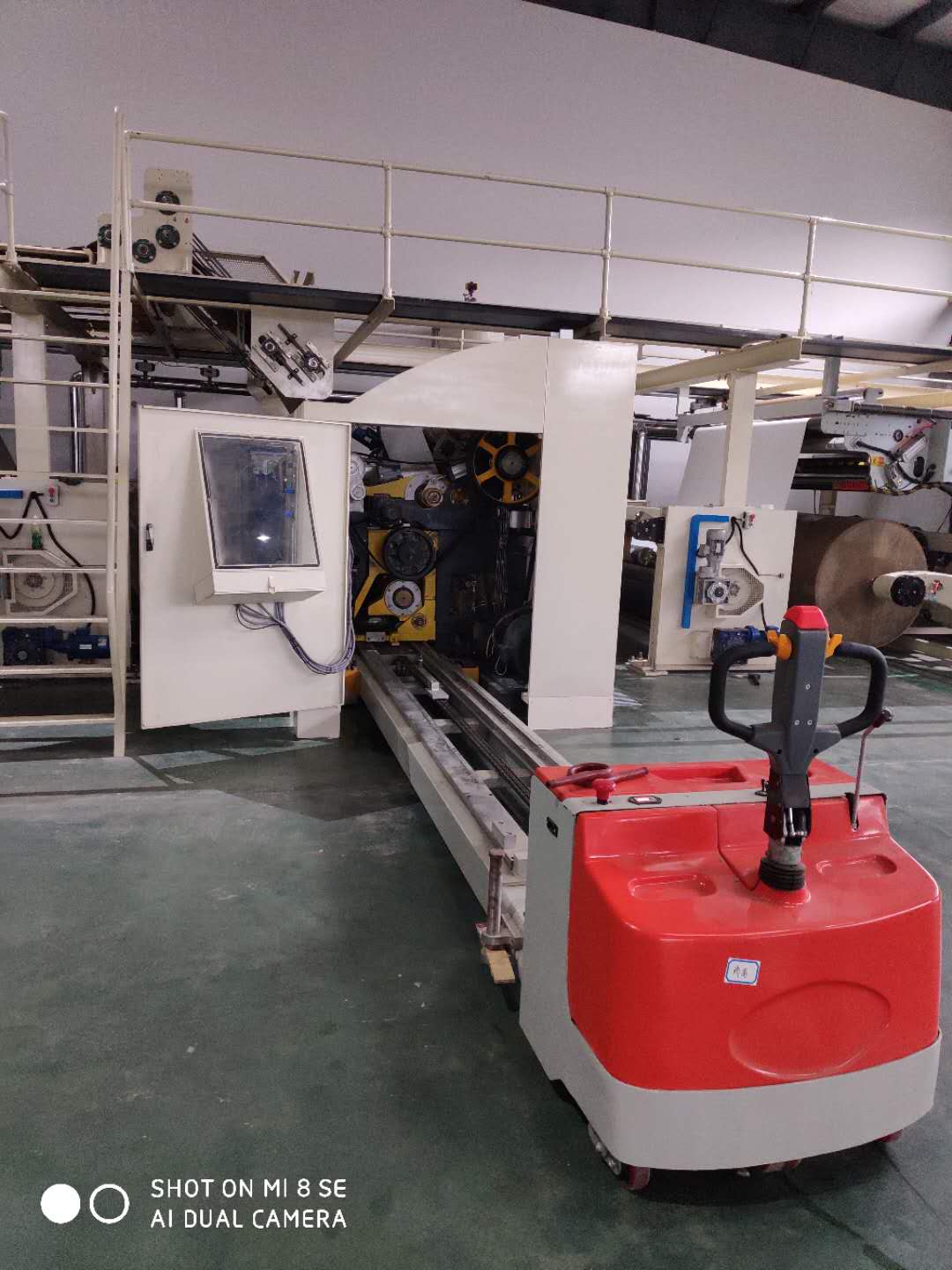

Trolly for changing roller

Change flute rollers in 10 minutes.

Flute profiles:A,B,C,E,F,G

Flute rollers installed under pressure roller,make machine focus lower,reduce vibration.

Inner suction flute roller,make cardboard smooth

Glue part not independent drive,PLC adjust glue quantity according speed,whole part could move out,easy maintain.

Steam quick change:fast connect steam,easy control

Electric control system check attachment

The corrugated roll is made of special alloy steel of 48CrMo with grinding process and hardened with hardness of HRC56-60.Surface could with tungsten carbide optional.

Usage: The machine presses the raw paper into corrugated core paper and glue it together with a smooth piece of paper, come into being corrugated paper. It can change a variety of shapes on the same mainframe.

Automatic adjust glue quantity according speed,electric adjustment optional.

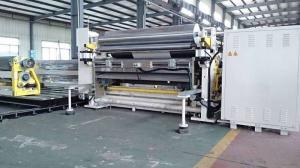

Dpack corrugated High Precion Single Facer Corrugated Machine With Steam Quick Change
