Drying and Shaping Paperboards' Machine,Color RAL1013 and Used for Production Line , Double Facer(Baker)

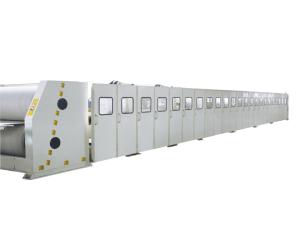

DF-636/745 Double Facer
| Automatic level | Fully automatic | Working width | 1400mm-2500mm |
| Speed | 120m-220m/min | Material | 20G |
| Drive type | Electric/Pneumatic | Power | 45-150kw |
| Size | 18650*3500*2000mm 1800type | Use for | 3/5/7 ply |
| Steam pressure | 0.8~1.3MPa | Steam temperature | 130 °-200 ° |
| Voltage | determined according to client’s voltage. | After-sales service provided | Lifetime tracking service |
| Packaging type | Split package | Certification | IOS9001 |
Double facer Origin materials and outsourcing standard parts
| Name | Brand/Width | Material | Origin |
| Hot plate | JIGANG | 20G | Jinan |
| Hot plate section main girder | Width320mm ANGANG | 20 # steel | Anshan |
| Cooling section main girder | Width 280mm ANGANG | 20 # steel | Anshan |
| Wall board on both sides of the drive part | | HT200 castings | Hebei |
| Trap valve | QIANGYI,DSC | | Shanghai |
| Rotary joint,Hose metal steam | YUQUAN | | Quanzhou |
| Cotton tape | | | Shenyang |
| Bearing | Harbin | | Harbin |
| with seat bearing | Jinrun | | Zhejiang |
| Electric equipment | CHINT, ABB or Schneider | | Zhejiang or European brand |
| Main motor | DEYI | | Jiangsu |
Hydraulic pressure station | Tianyuan | | Shandong |
| Air cylinder | TIANYUAN | | Shandong |
Circular turbine box double facer:
Big worm gear box double facer:

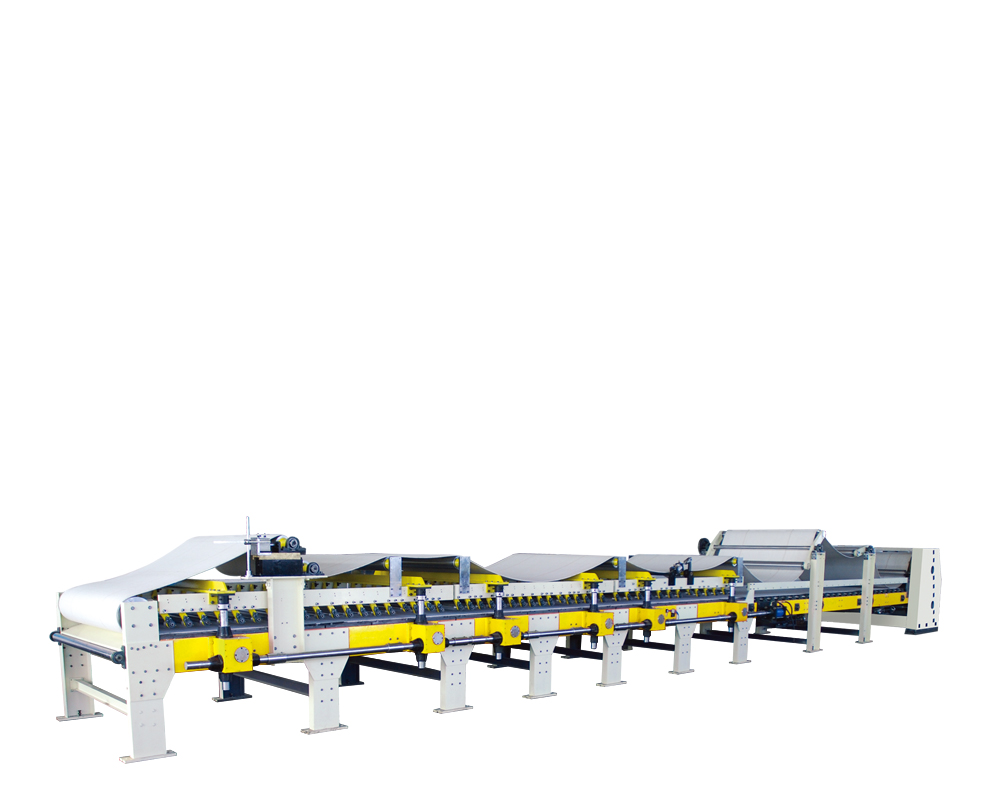

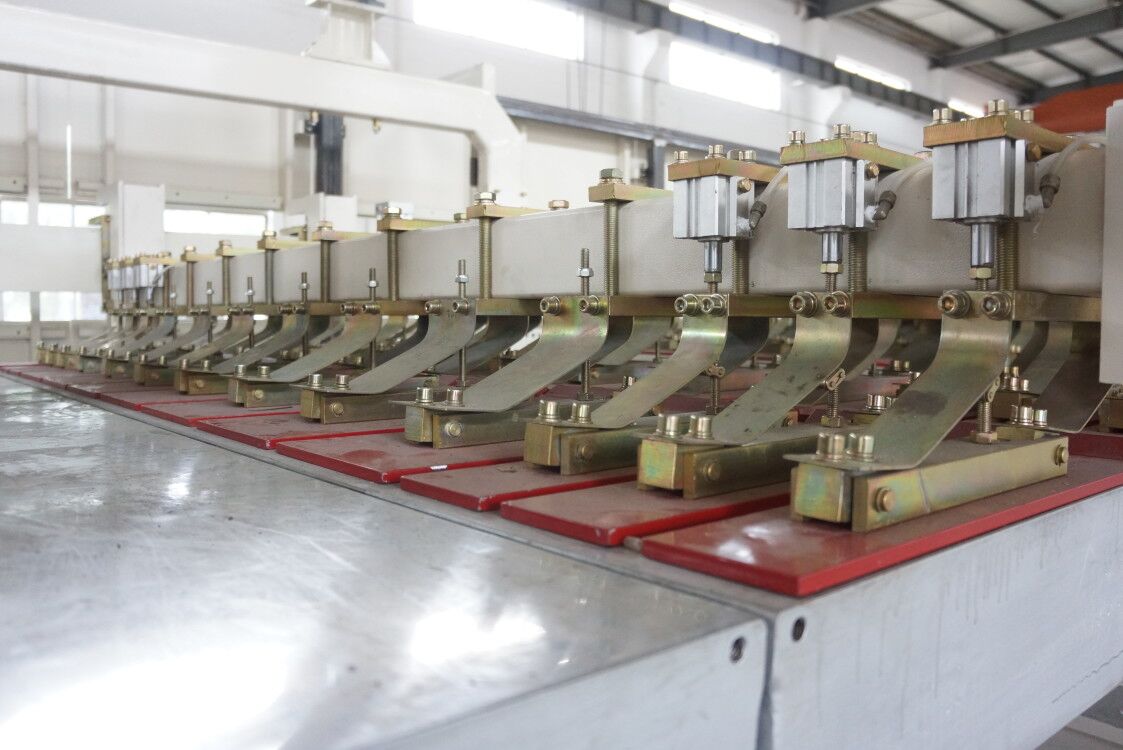

Hot plate:

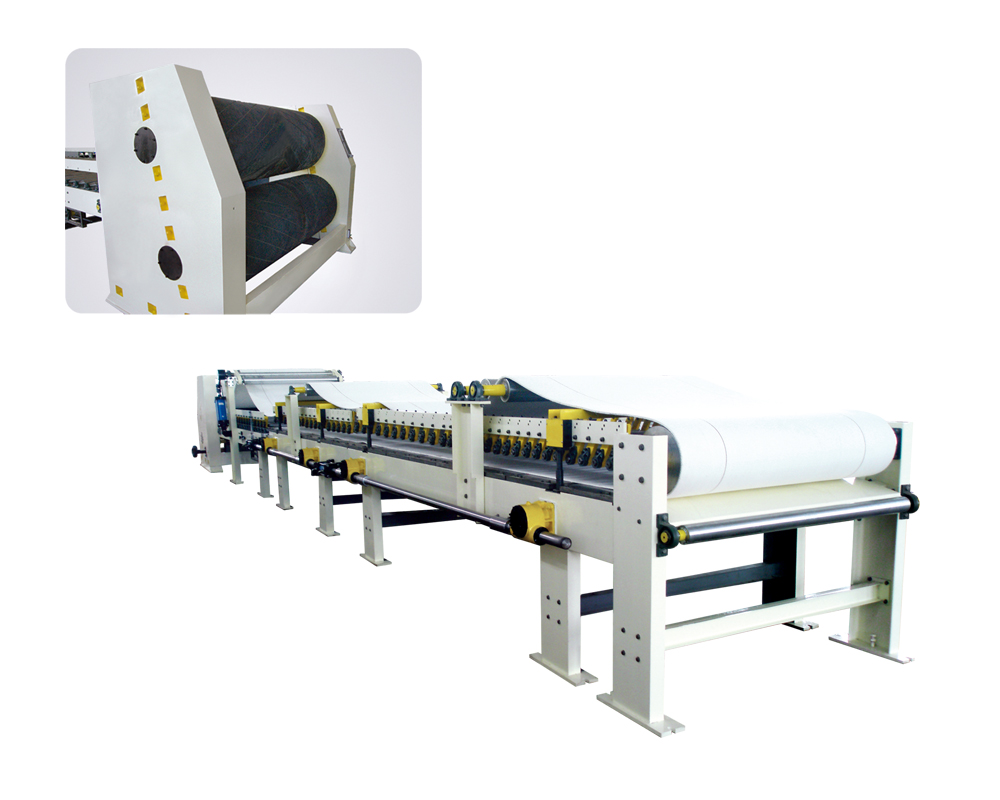

Usage:Single-side coated corrugated paper for drying and shaping, it completes gluing each layer of cardboard and cools it.the cotton tape passes through directional rollers at both ends and is equipped with a ballast system.The corrugated board is placed on the flat, cotton tape will also bring the cardboard into the next process.
Dense press roll are applied, press plate is optional, motorized lifting and lowering as a whole, hydraulic lifting or lowering system is optional.
The upper cotton belt is equipped with automatic deviation-correcting device and pneumatic tension device. Tension deviation-correcting device is equipped for the lower cotton belt.
Dense suspended press rolls are applied to the cool system.Oil-immersed seal driving.
Rubber-wrapped drive roll for longer use of the cotton belt.
Isolated driving box.Gimbal driven.
