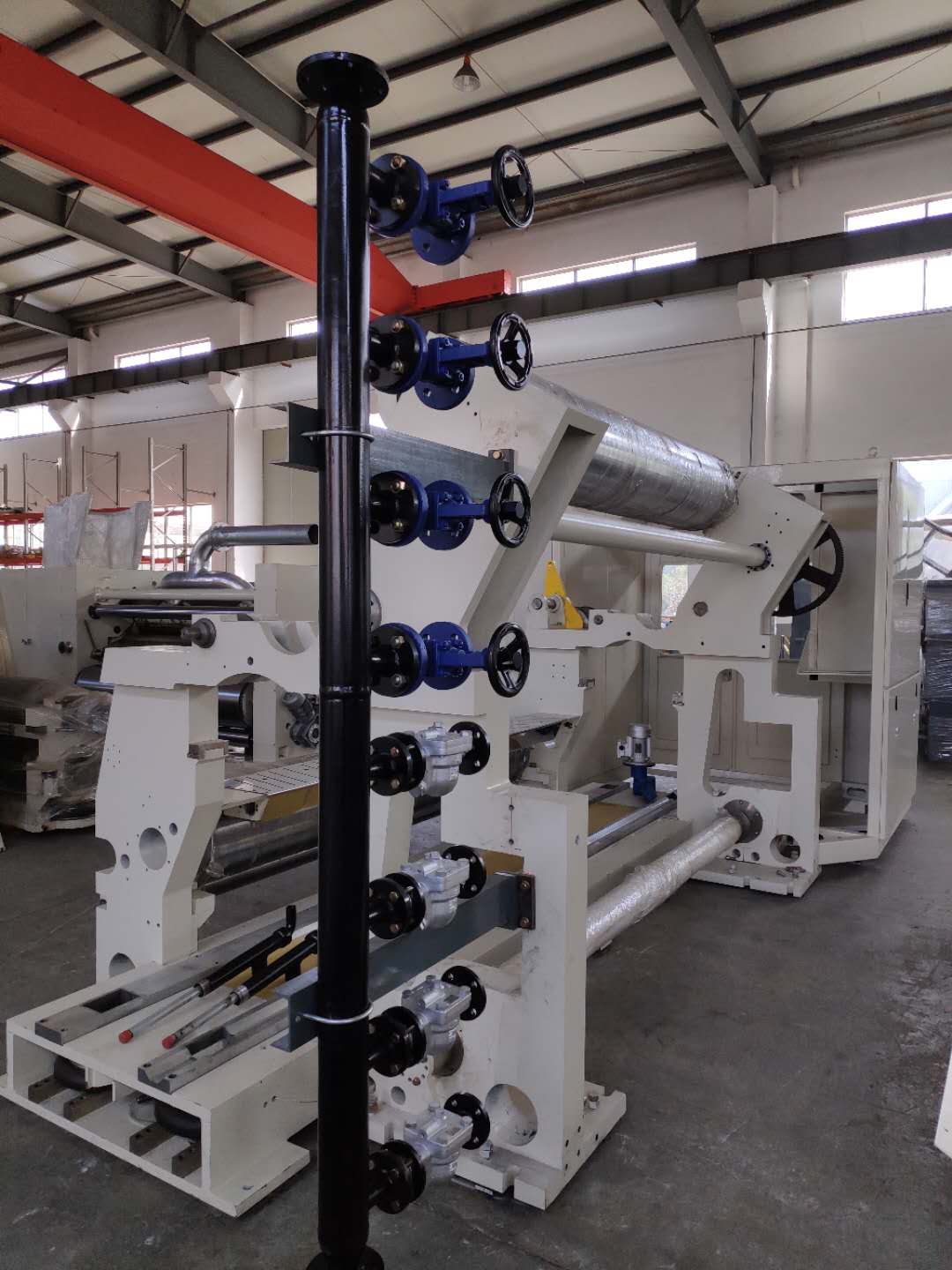

SF-360S Single Facer
| Working width | Max.2200mm min 1100mm |
| Maximum mechanical speed | 200m/min |
| Actual running speed | 160-180m/min |
| Working air pressure | 0.6～0.9MPa |
| Steam pressure | 0.8～1.3MPa |
| Steam consumption | 0.65～1t/h |
| Temperature requirement | 160～200℃ |
| External dimension | 4400mm×1900mm×2100mm (length × width × height) |
| Working power supply | voltage: 380V; frequency: 50Hz |
Characteristics of the equipment
Hydraulic type, paper guide adopts wind adsorption to maintain the stability of corrugated type at high speed.
* by the fan through the true empty box corrugated paper adsorption in the corrugated roll 180 degrees in the range of negative pressure, to complete the rolling corrugated.
* the width of the lower corrugated roller suction groove is no more than 2.5mm, which can reduce the stripe marks of single-sided corrugated board.
* the transmission part adopts universal joint transmission, isolating vibration source, making the transmission more stable, reliable operation and stronger maintenance.
* the reducer is lubricated with oil, and the closed gear is driven to reduce the vibration of the machine.
* use automatic circulation glue supply, pneumatic glue and reset, with buffer effect.
* the gluing area is electrically adjusted, and the gluing part operates independently when the machine stops to prevent the paste from being exhausted.
* the surface of the cots has been specially embossed and chrome plated.
* the rubber coating part is driven separately and can be pulled out for convenient maintenance and cleaning.
* corrugated rolling part of separate small wall board design, tile roll easy to remove, maintenance, replacement of the corrugated type is convenient and fast.
* upper and lower corrugated roller is made of high quality alloy steel, after heat treatment, hardness in HRC 56-60 degrees.
*:53.45 kw
